| 品牌：FUJI/富士通 | 型号：MB97R8110 | 类型：存储器 |
| 封装：Wafer |
MB97R8110
FeRAM内置LSI
(RFID用LSI, 验证用LSI, 定制LSI)
通信规格 ***/IEC18000-63 PC C1G2 Ver.1.2.0
工作频率 超高频UHF 860-960MHz
内存容量 8KByte
读写耐久性 (读写次数) 10万亿次
无电池的RFID方案，富士通新推出的RFID芯片——MB97R8110，将RF无线信号通过电磁转换为电能，在给内部供电之余，还能将多余的电能提供给外部的元器件，为无源电子系统设计创造了基础。

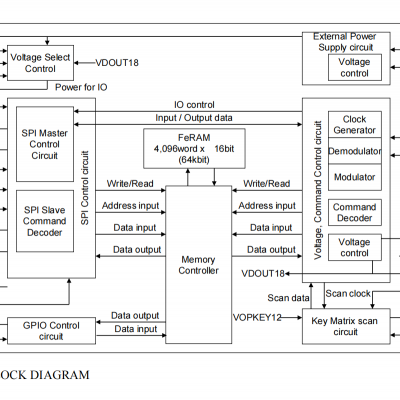

MB97R8110 Compliant with EPCglobal Class 1 Generation 2 (C1G2) －Carrier frequency: 860 to 960 MHz －Data rate R/W → Tag: 26.7 kbps to 128 kbps (assuming equiprobable data) Tag → R/W: 40 kbps to 640 kbps ? RF Generated Power supply to external devices (3.0V 600uA output from +8dBm RF input) ? Serial Interface (SPI) －Slave mode operation : USER memory area can be read/written through SPI. －Master mode operation : External SPI slave device can be controlled through SPI. －Arbitration feature between RF and SPI access controlled by SPIREQ and SPIACK. ? Key Matrix Scan Interface ? FeRAM: Non-volatile memory with High speed read and write －USER bank size: 61,440 bits* －EPC length: up to 480bits －BlockPermalock: 8 Areas of USER bank to be write-protected in units of 512 words (=8,192bits). －Read/Write Endurance: 1013 times. －Memory data retention: 10 years (+85 ?C) *In SPI Master communication, 28,672bits of memory can be allocated for the buffer of data to be transferred to external slave device and the storage of response data from external SPI slave device.
